YPM Series Medium Pressure Filters
Basic Info
Model No.: YPM
Brand: TIANRUI
Structure: Mobile
Usage: Oil Impurities
Type: Press Filter
Mechanical Principle: Pressure Filtration
Performance: Efficient Filtration
Working Pressure(Max): 21 Mpa
Additional Info
Packaging: Carton, Wooden case or according to your requirement
Transportation: Ocean,Land,Air,International courier
Place of Origin: China
Supply Ability: 1000 pieces per month
Certificate: ISO 9001:2008
HS Code: 8421 299 090
Port: Qingdao,Shanghai,Tianjin
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Product Description

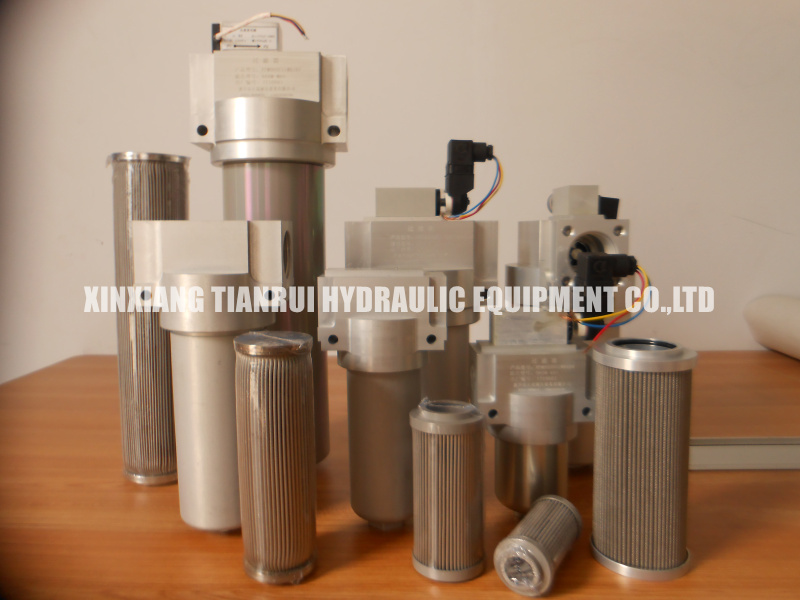

YPM Series Medium Pressure Filters are installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness. Differential pressure indicator and by-pass valve can be assembled according to actual requirement.
Filter Element adopts many kinds of materials, such as glass fiber, Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.
The use of aluminum alloy material overall processing molding, small volume, small weight, compact construction and nice looking figure.
TECHNICAL DATA
Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
Operating pressure (max): 21MPa
Operating temperature:- 25℃~110℃
Indicating pressure drop: 0. 5MPa
By-pass valve unlocking pressure: 0.6MPa
ODERING INFORMATION
CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RTING FLOW RATES
(Unit:1×10 5 Pa Medium parameters:30cst 0.86Kg/dm 3)
DIMENSIONS
Product Categories : Hydraulic Filter Assemblies > Medium Pressure Filter
